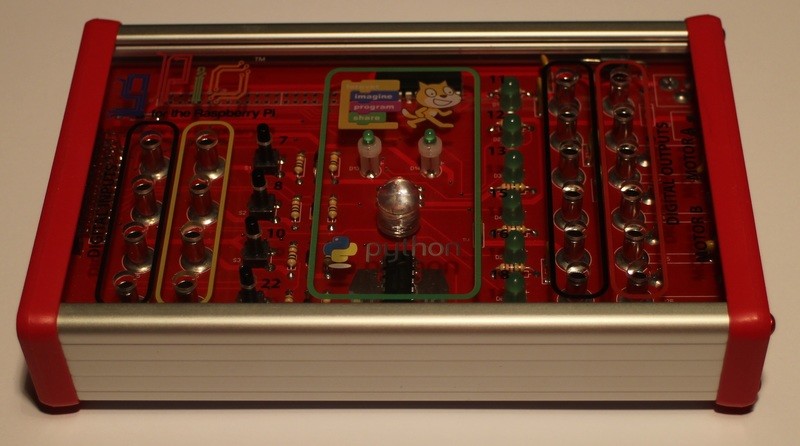

You can choose from two types of gPiO Box.
The key differences are shown in the table below
gPiO Box | gPiO plus | |
digital inputs | 4 | 4 |
digital outputs | 6 (6 @ 0.5 amps per channel | 6 (5 @ 0.5A, 1 @ 1.5A) |
motor outputs | 2 @ 0.5 Amps | 2 @ 2 Amp |
maximum supply voltage | 18 Volts d.c. | 48 Volts d.c. |
analogue inputs |
0 |
4 |
“When I first got my hands on a Raspberry Pi early experiments with breadboard and jumper wires were a disaster. I had decided that there probably wasn’t a niche for the Raspberry Pi at KS2 until I got my hands on a set of gPiO interfaces. I now teach physical computing on the Pi throughout my school, starting with children as young as 8 – and they love it!”
